Highbay UFO LED Luminary

OPPUS-HB-150W-MV

Technical information

The HIghbay UFO 150W is a high-efficiency LED luminaire for applications in warehouses and industrial buildings with advanced lighting requirements. Light source with Lumileds Philips 3030 2D LED chip with a luminous efficiency of 170LM/W with L70 certification (100 THOUSAND HOURS). Heavy Duty Driver with 5-year warranty.

High transmittance polycarbonate lens with no risk of breakage for operations in safe industrial environments. Optimized aluminum housing for better thermal management and heat transfer of the luminaire. High resistance to mechanical impact and protection against particle and water ingress IP 66.

Dimensions (mm)

Luminary Image

Certifications

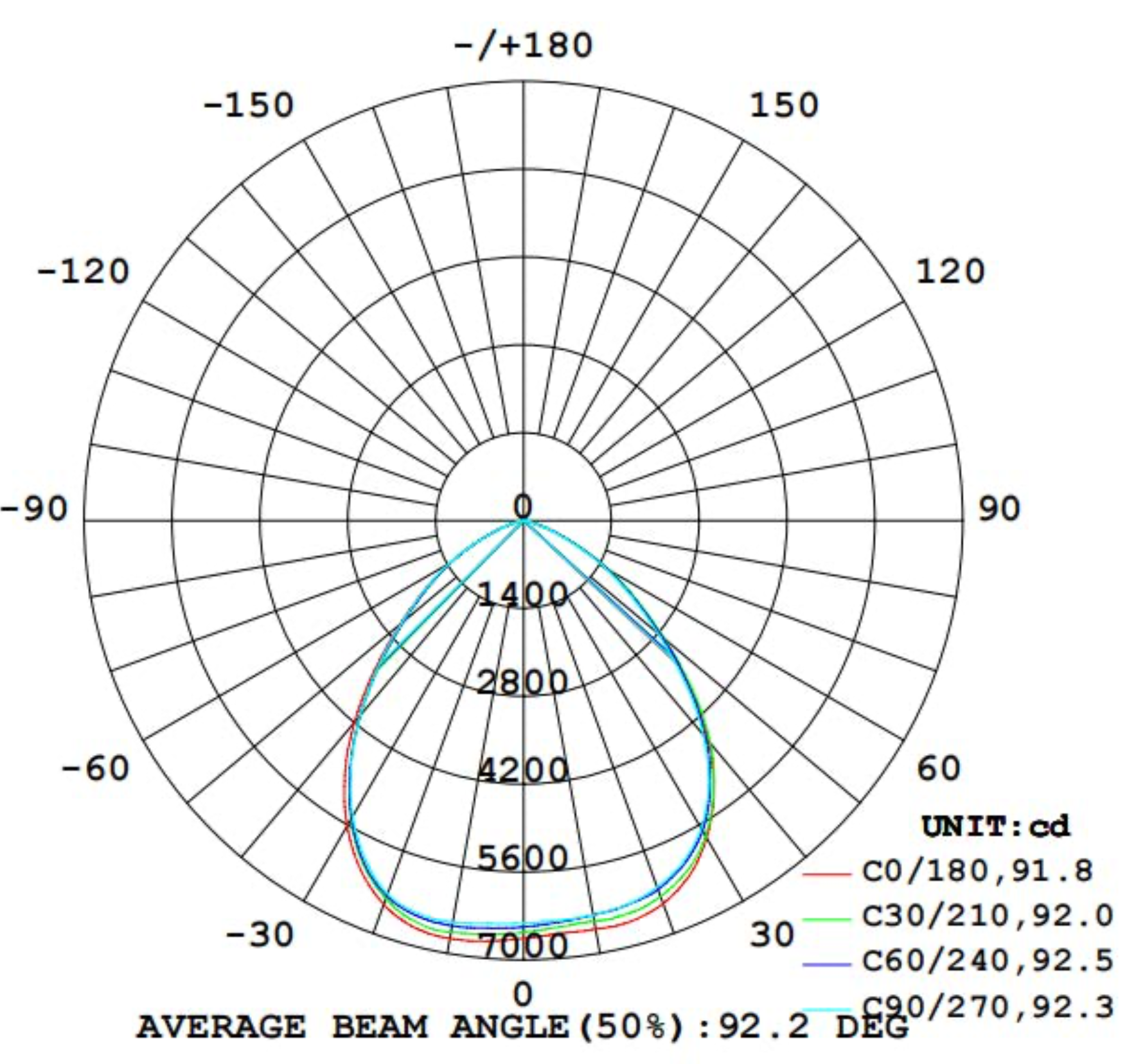

Distribution Curve
Accesories

U-Type Arm

ALUMINUM REFLECTOR
*Also available in polycarbonate

Specifications
  • Led Power:
    150W
  • Controller:
    External Round Driver
  • CRI:
    >80
  • Max. Luminous Flux:
    25 500 Lumens
  • Efficiency:
    170 Lm/W
  • Light Distribution:
    110° symmetric
  • Lifespan:
    100,000 H
  • Color Temperature:
    3000K to 6000K
  • Input Voltage:
    100-277VAC
  • Working Temperature:
    -36 +50°C
  • Rec. height:
    6-8 m
  • Illuminated Area:
    40 a 70m2
  • Net Weight:
    2,5Kg/3,5Kg
